PRO (AC) D90 - D200 Series

Intensive utilisation range

If you need more water and if you have a real 6KW generator for a PRO 90 and a real 8KW for a PRO 160 and PRO 200, this range will fit your requirement of fresh water.

Tank capacities of boats tend more and more to reduce for a simple reason: to avoid excessive weights.

We conceived water makers with high outputs, which allows to quickly satisfy the requirements and to spare energy.

This range can be delivered in 2 front panel versions:

Compact model:

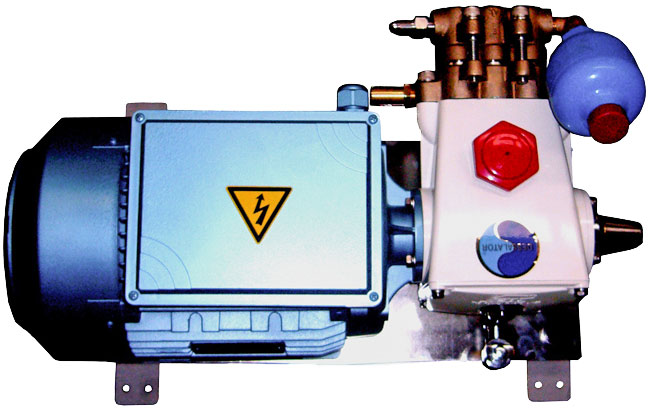

Pump motor unit together with the front panel on an ABS frame
We recommend this version when an engine room is available.

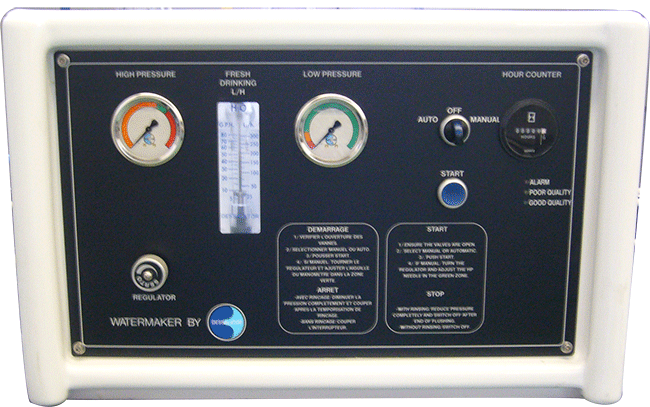

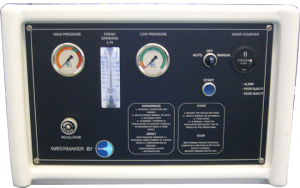

Front panel on an ABS frame

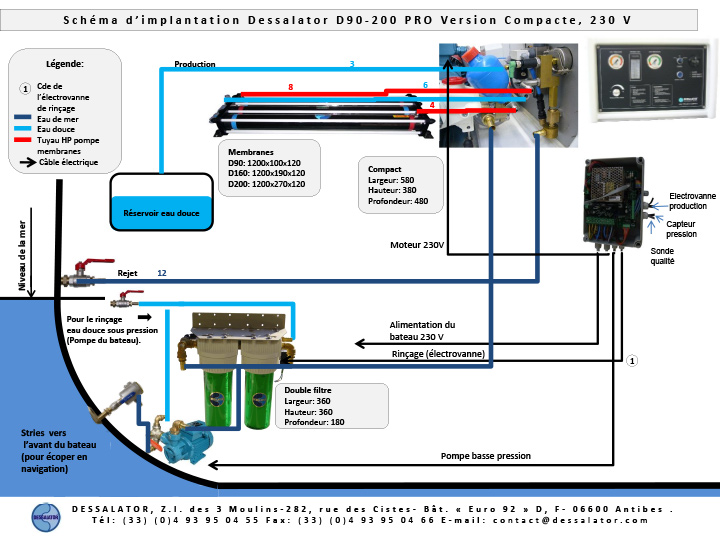

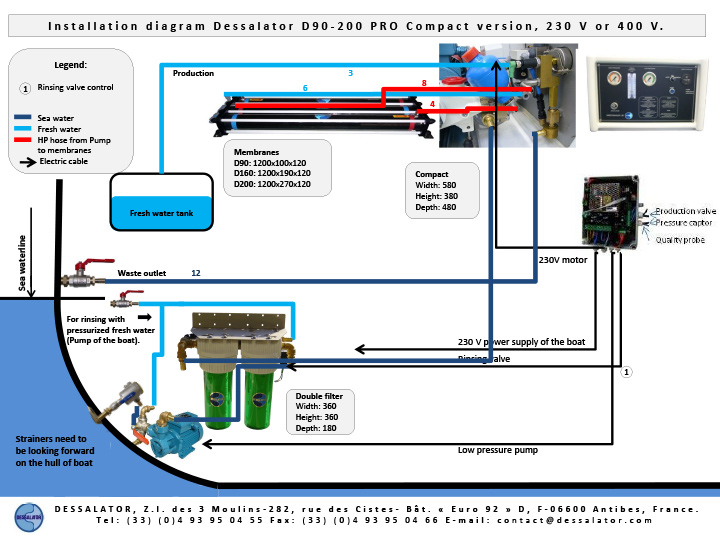

Installation diagram Dessalator D90-200 PRO Compact version

Remote control version:

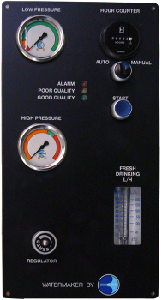

  • Vertical front panel

  • Installation diagram D90-200 PRO, vertical version

Model with mini control panel

We have moreover an optional product for the control panels of this range, which allows starting and stopping the machine and which is of a very little and discrete size.

The connection of this mini control panel is done with only one cable.
Optional wireless connection available, range up to 50 meters.


Width: 8cm, Height: 16cm, Depth: 8cm

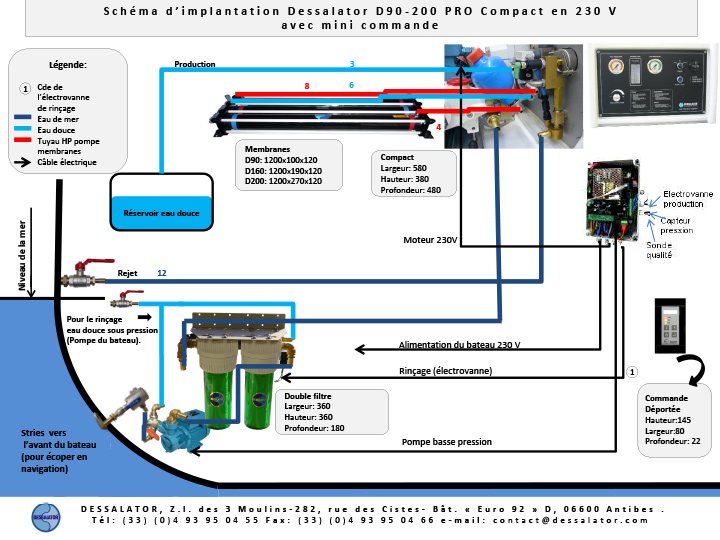

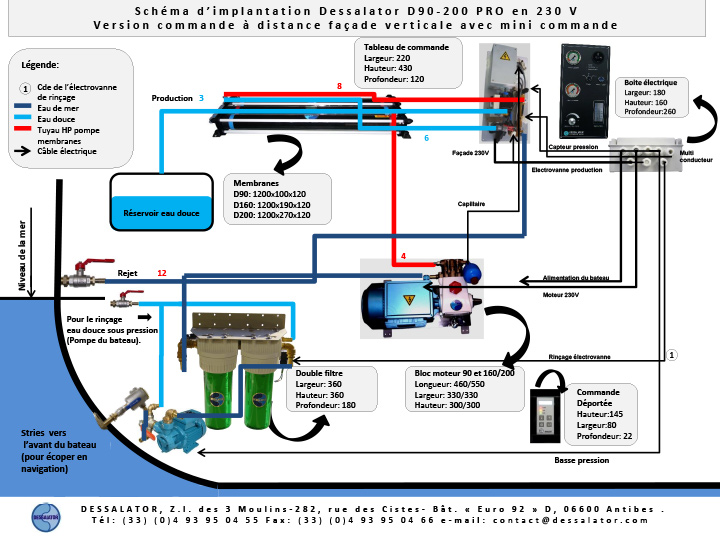

Installation diagram D90 - D200 PRO with mini remote control - compacte and vertical version
