DC FREEDOM
12 or 24 Volts

Fresh water production up to : 30, 60 or 100 liters/hour

Modular version with remote control panel

For motorboats and sailboats from 10 to 15 meters.

It is the ideal watermaker for boats whose only available source of energy comes from the alternator driven by the main engine.
It is also an ideal solution for boats that have a low power generator.

Due to its small size and modular design, the watermaker can be easily integrated without wasting valuable space on board.

The advantages of this product are:

  • Available in 12 or 24 Volts Very compact modular machine
  • Fits in small spaces – no more wasting valuable storage
  • High production up to : 30, 60 or 100 litres/hour
  • Integrated automatic rinsing
  • Easy to use, easy to maintain
  • Robust components offering strength and reliability

   Optional : Micro remote control and automatic regulation

DESSALATOR products are delivered complete, equipment conforms to effective eec standards:

  • The strainer and the hull valve
  • The automated rinsing solenoid valve
  • The pre-filter for 5 micron solid particles and its assembly key, equipped with a 3-way manual rinsing valve
  • Circuit breaker or fuse holder depending on model.
  • High pressure piping: 2 tubes and 4 special DESSALATOR® fittings.
  • Freshwater production piping membranes/control panel.

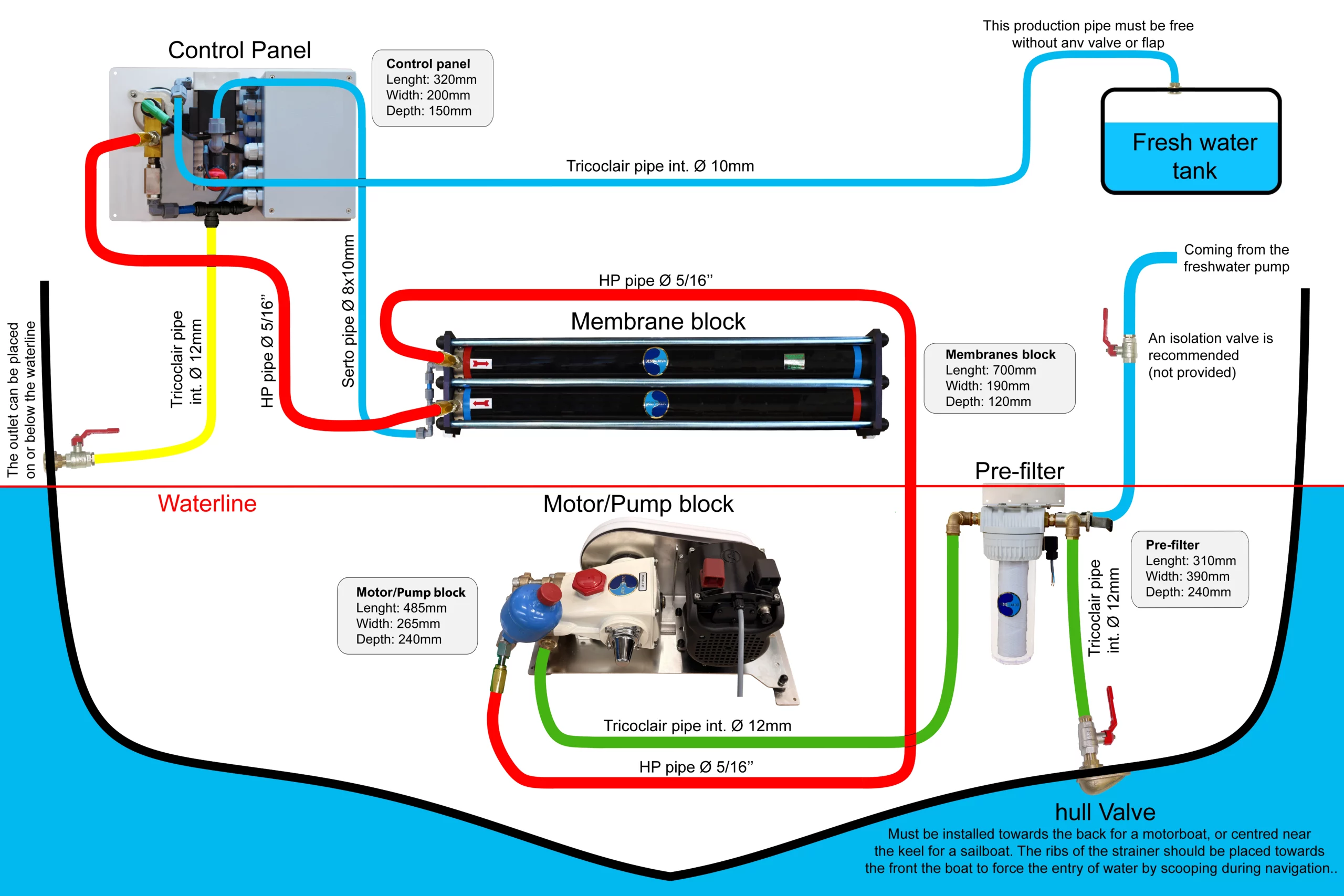

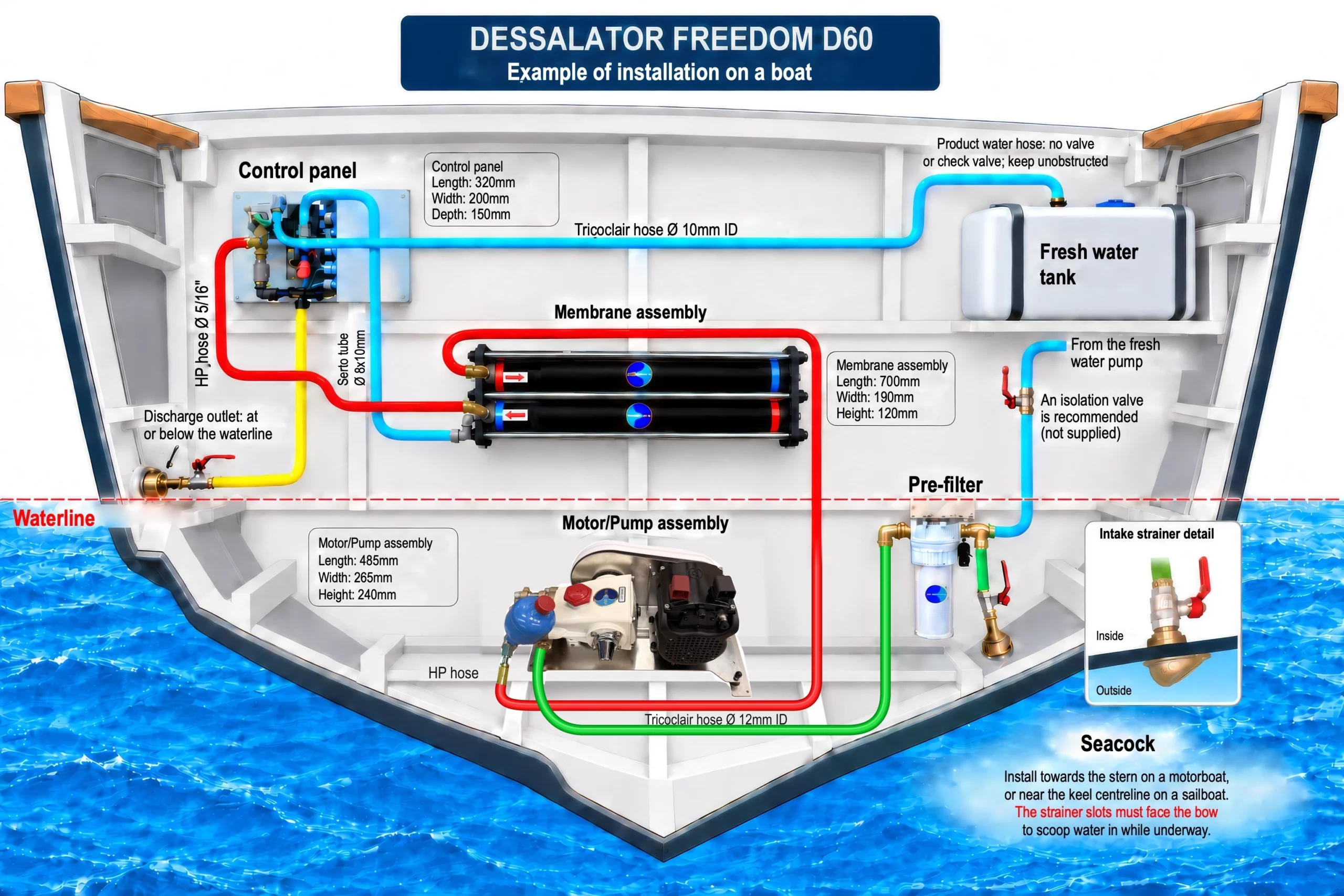

Installation diagram DC FREEDOM D60

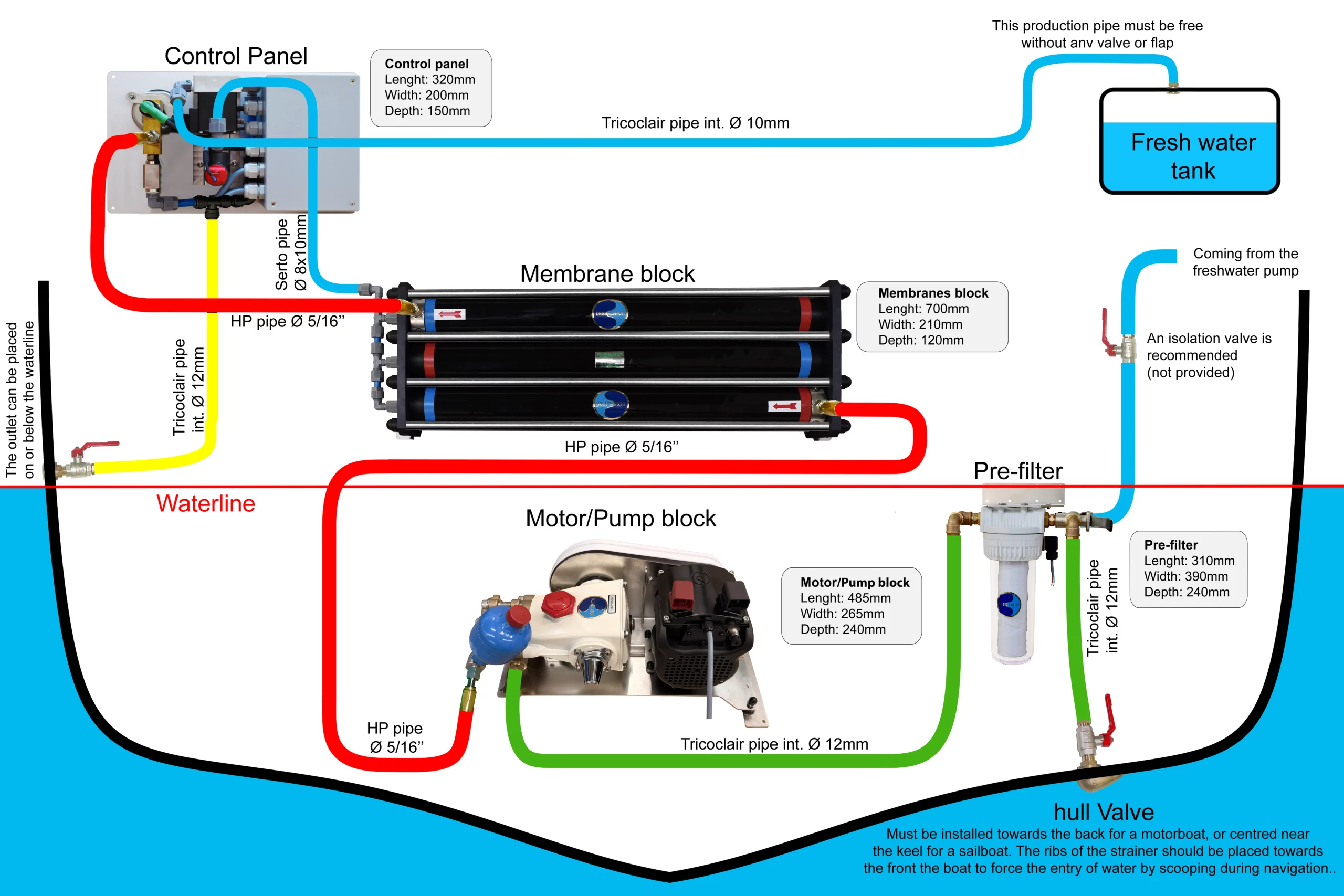

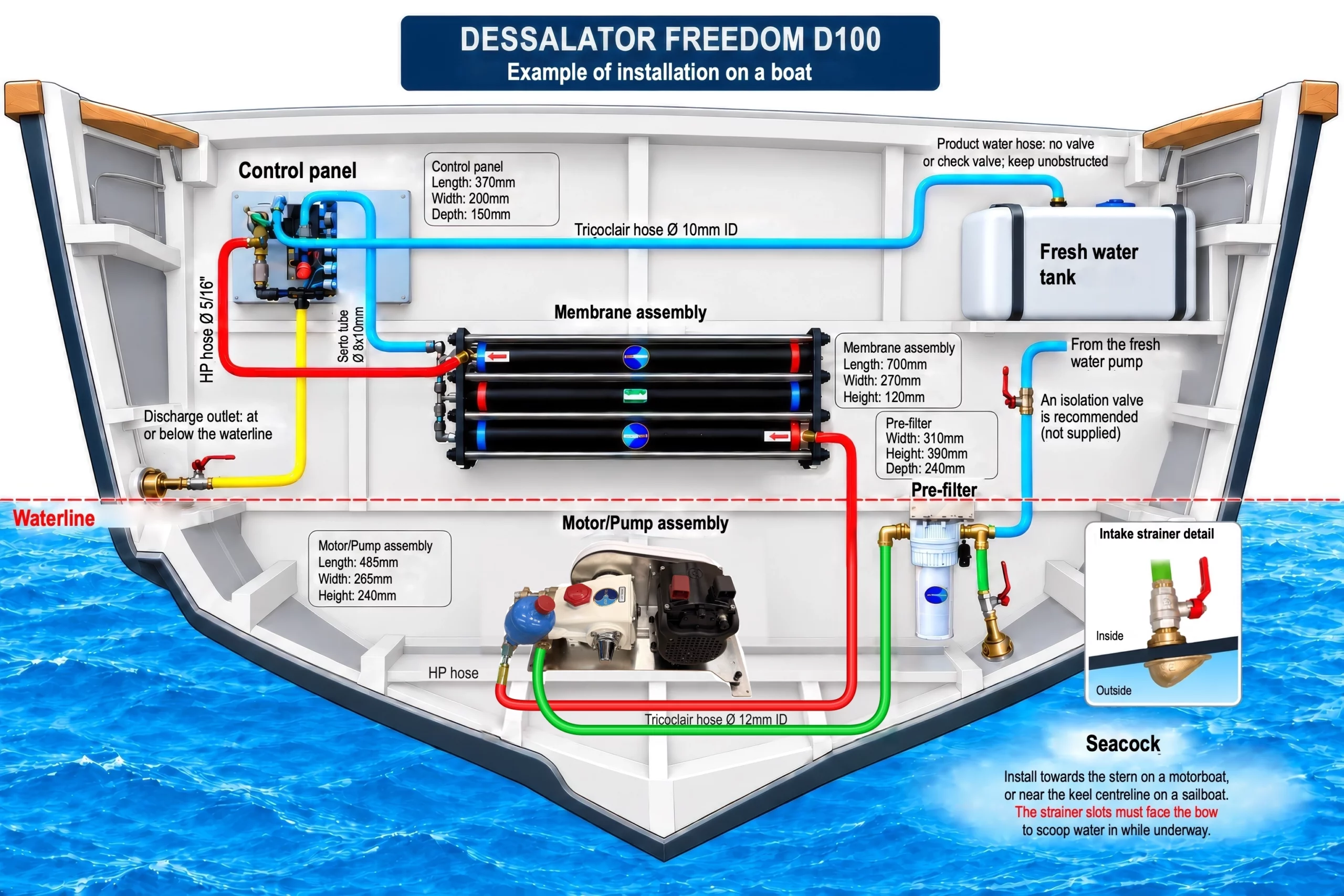

Installation diagram DC FREEDOM D100



Instructions for use :

–> DC FREEDOM D30, D60 & D100

Installation notice :

–> DC FREEDOM D30 & D60

–>DC FREEDOM D100
