AC CRUISE NAVIGATOR
230 or 120 Volts

Fresh water production up to : 60 or 100 liters/hour

Modular version with remote control panel

For motorboats and sailboats from 10 to 15 meters.

The AC CRUISE NAVIGATOR model includes the “AUTOMATIC” option for pressure regulation by default.

As a result, the pressure increase happens automatically and remains stabilized within the optimal range, ensuring optimal production under all circumstances.

The AC CRUISE NAVIGATOR model also offers numerous advantages:

  • Designed to meet high-intensity usage demands
  • New high-pressure pump design
  • Stainless steel pump head
  • High resistance to corrosion and electrolysis
  • Easy access for inspection and maintenance
  • Quieter operation thanks to its design
  • 20% reduction in motor/pump block size
  • Equipped with a flow controller to protect membranes when navigating in brackish water
  • Developed and tested by Dessalator® over 5 years in collaboration with the world’s largest high-pressure pump manufacturer
  • Patented design

   Optional : Micro remote control

DESSALATOR products are delivered complete, the equipment compliant with the EEC standards in force:

  • The strainer and the hull valve
  • The automated rinsing solenoid valve
  • The pre-filter for 5 micron solid particles and its assembly key, equipped with a 3-way manual rinsing valve
  • Circuit breaker or fuse holder depending on model.
  • High pressure piping: 2 tubes and 4 special DESSALATOR® fittings.
  • Diaphragm/Panel Freshwater Production Piping.

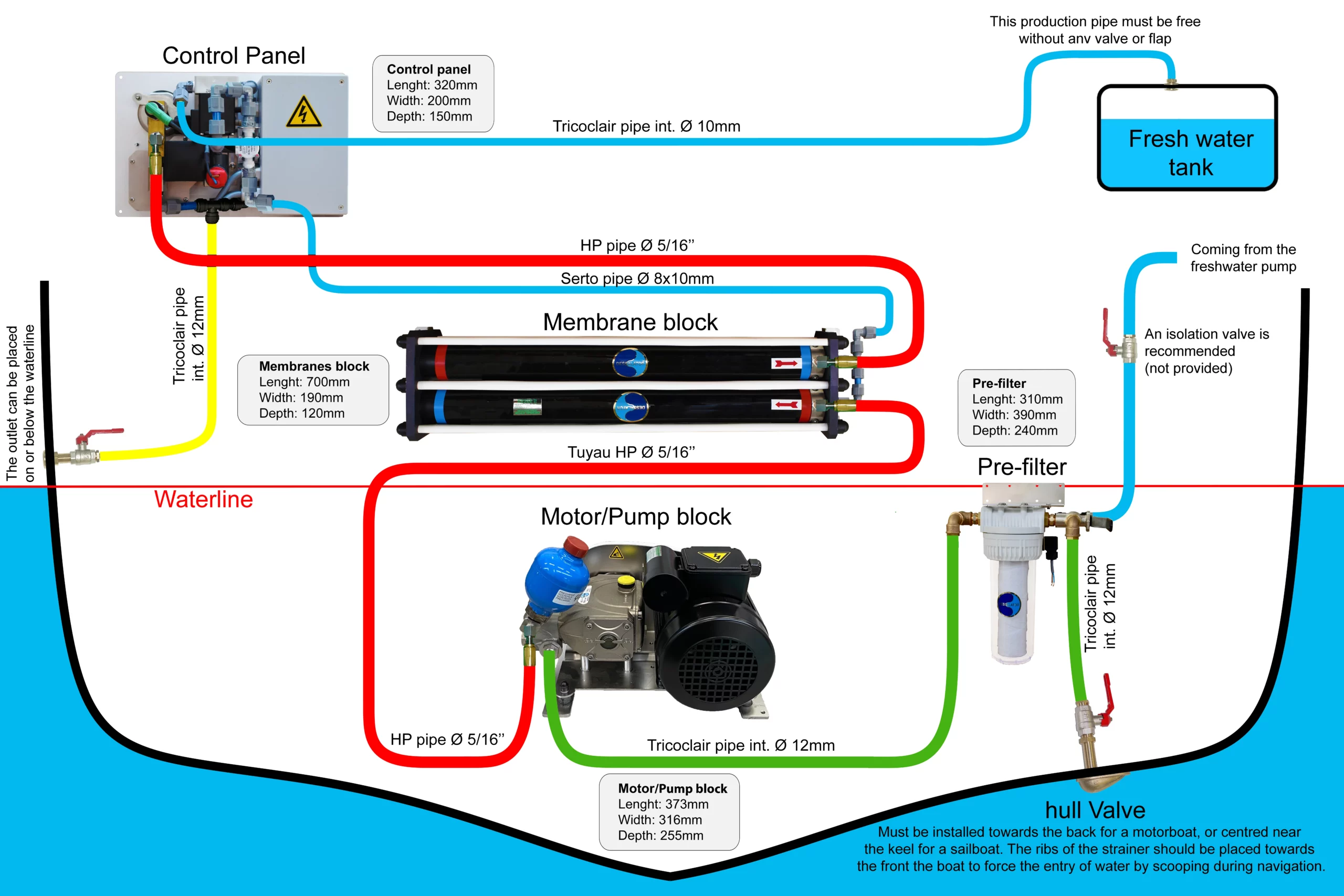

Schematic diagram AC CRUISE Navigator D60

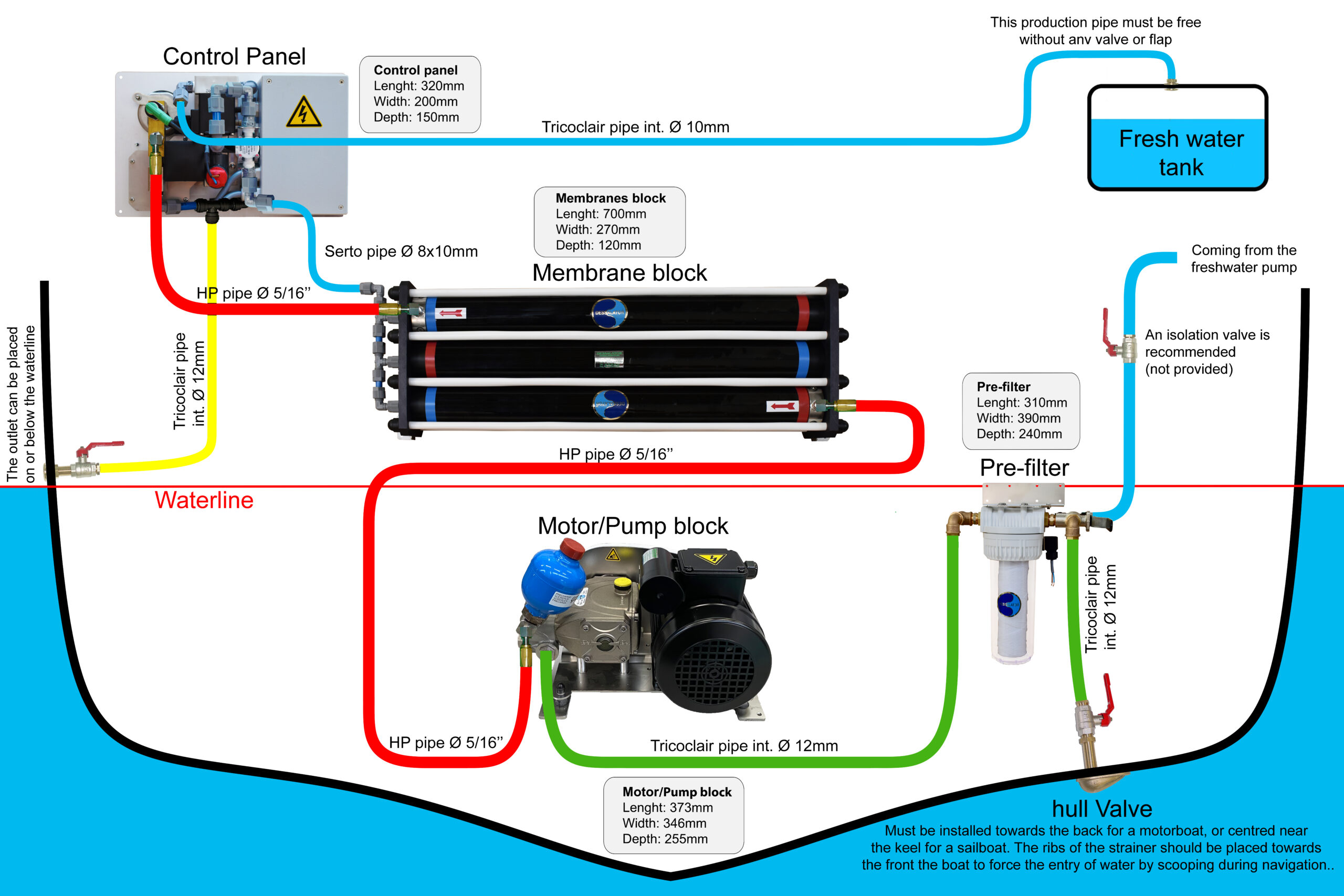

Schematic diagram AC CRUISE Navigator D100



Instructions for use :

–> AC CRUISE Navigator D60 & D100

Installation notice :

–> AC CRUISE Navigator D60 & D100

Dessalator — 45 years of experience

AC CRUISE series

AC CRUISE

Navigator

A compact stainless steel pump and automatic regulation for fresh water on board.

120 or 230 VAC60 or 100 L/hAutomatic regulator
Explore the specifications ↓
AC CRUISE Navigator

Designed for life on board

Fresh water, made simple

A modular design with a separate control panel, suited to motorboats and sailing yachts from 10 to 15 metres.

Compact and modular

Separate components make installation easier in the available space on board.

Automatic regulation

The motorized regulator automatically adjusts and stabilizes pressure.

Ease of use

Integrated automatic flushing, easy maintenance access and straightforward operation.

AC CRUISE Navigator

Specifications and equipment

Key points

  • 120 or 230 VAC power supply
  • 60 or 100 litres/hour, depending on model
  • Separate control panel
  • Motorized automatic pressure regulator
  • Optional remote micro-control
  • Stainless steel pump head: corrosion and electrolysis resistance
  • Motor/pump unit reduced in size by 20%
  • Flow controller to protect membranes in brackish water

Supplied complete

Seawater intake strainer and seacock, flushing solenoid valve, 5 micron prefilter, electrical protection and tubing.

Modular installation

Three components, designed to fit on board

Motor / pump unit

The heart of the system, designed for compact installation.

Control panel

Controls and indicators remain accessible on board.

Membrane unit

A separate unit for flexible positioning on board.

Technical documentation

Dimensions, diagrams and manuals

Find the documents you need to prepare your installation and use your watermaker.

Questions about AC CRUISE Navigator ?

Our agents can help with your project.

Find a Dessalator agent →
