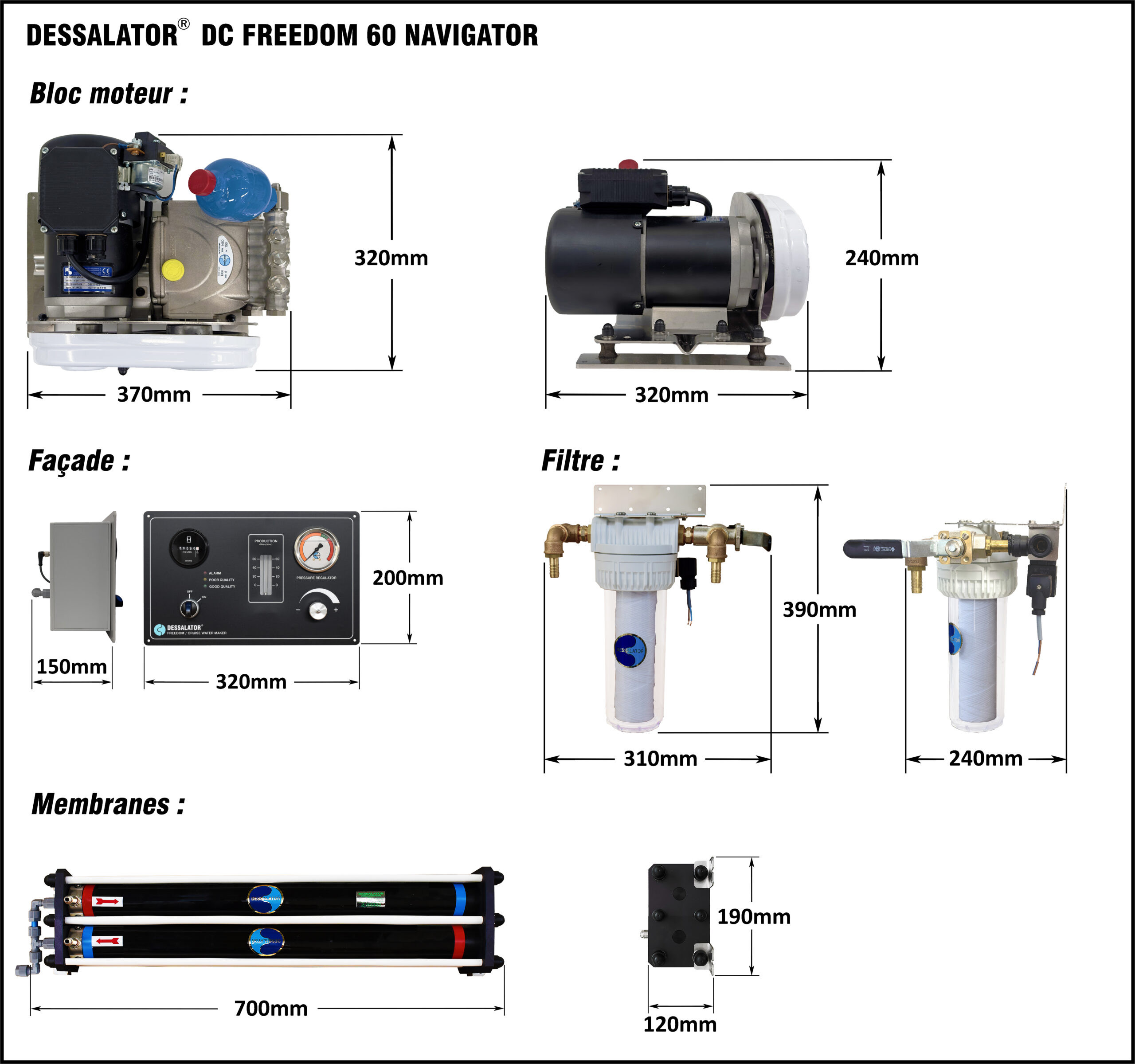

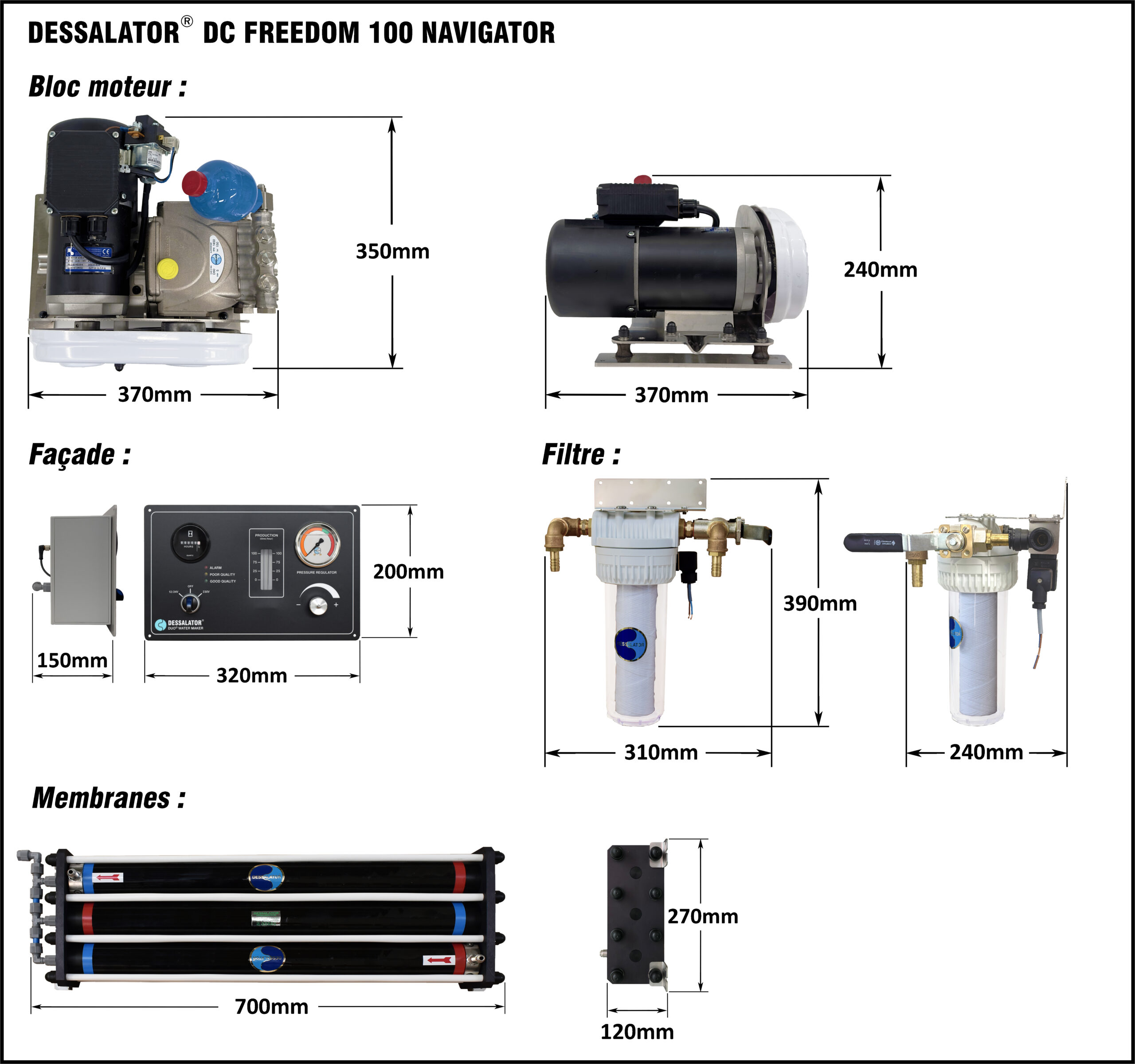

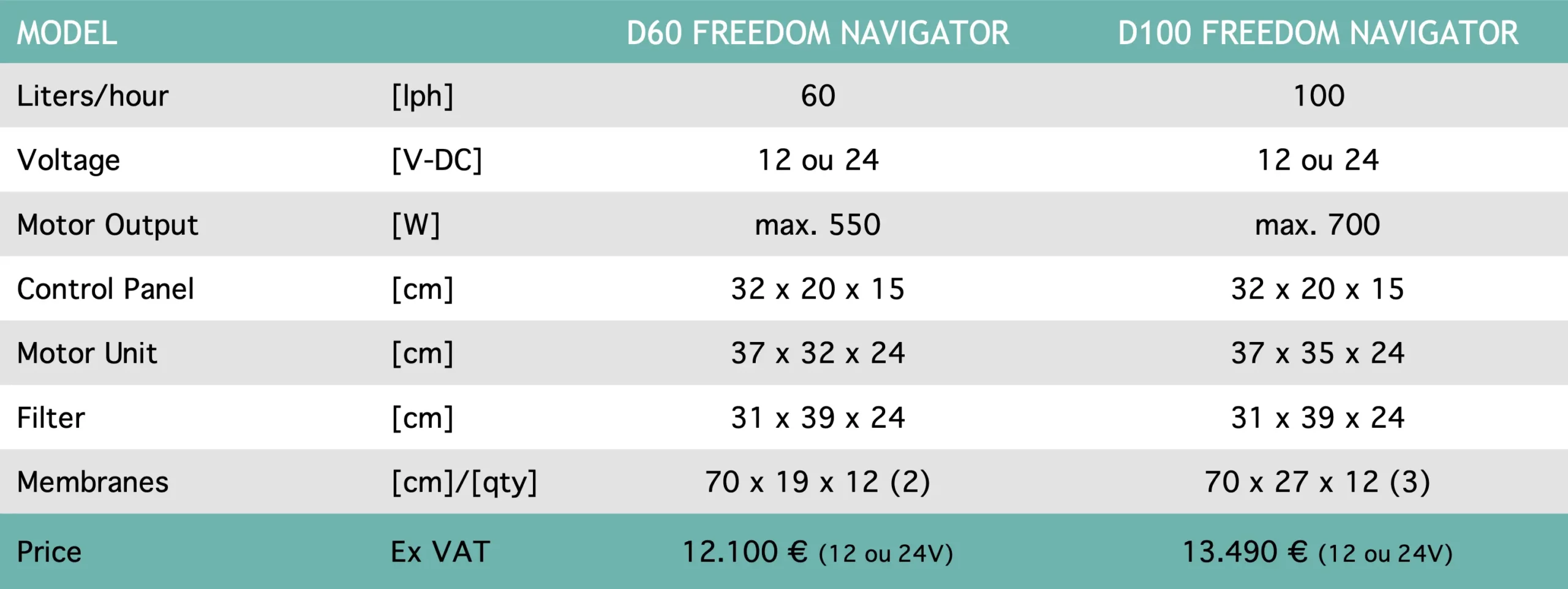

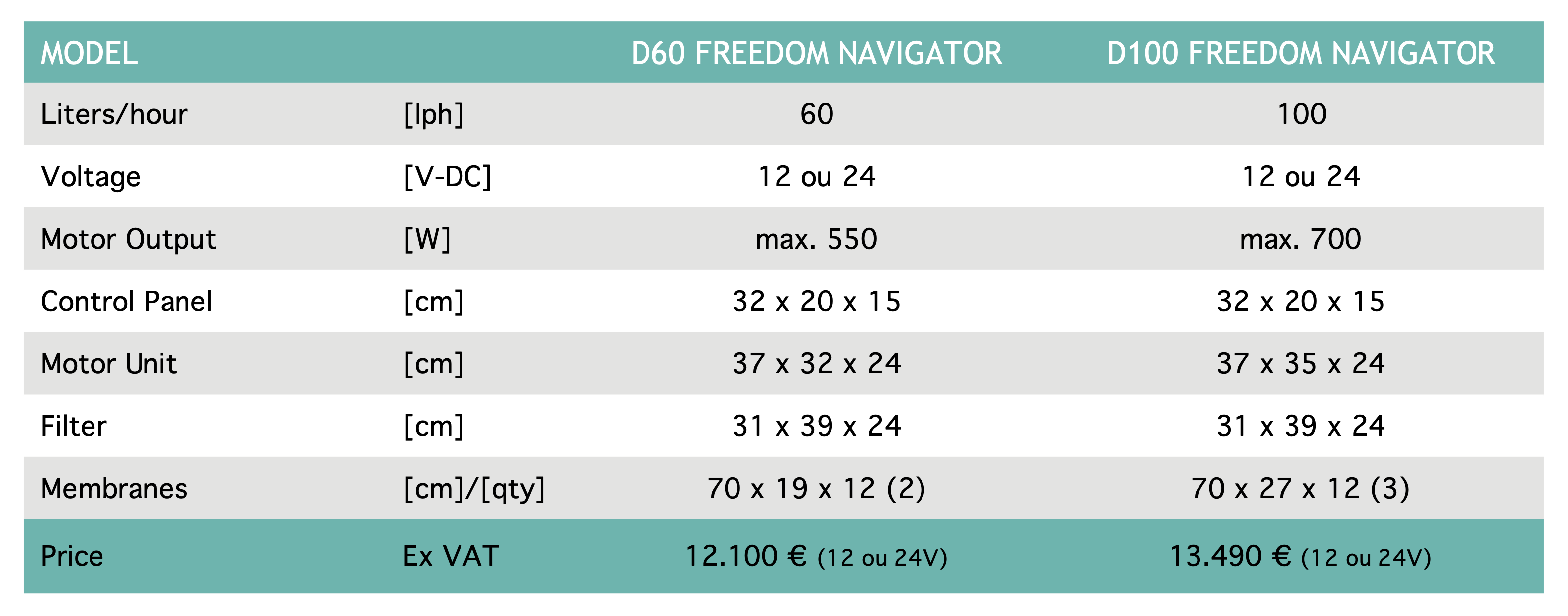

DC FREEDOM NAVIGATOR 12 or 24 Volts
Fresh water production up to : 60 or 100 liters/hour
Modular version with remote control panel
For motorboats and sailboats from 10 to 15 meters.
The FREEDOM DC NAVIGATOR model comes standard with the AUTOMATIC pressure regulation system.
Pressure build-up is therefore fully automatic and continuously maintained within the optimum operating range, ensuring maximum freshwater production under all operating conditions.
The FREEDOM DC NAVIGATOR also offers numerous advantages:
- Designed for intensive and long-term use

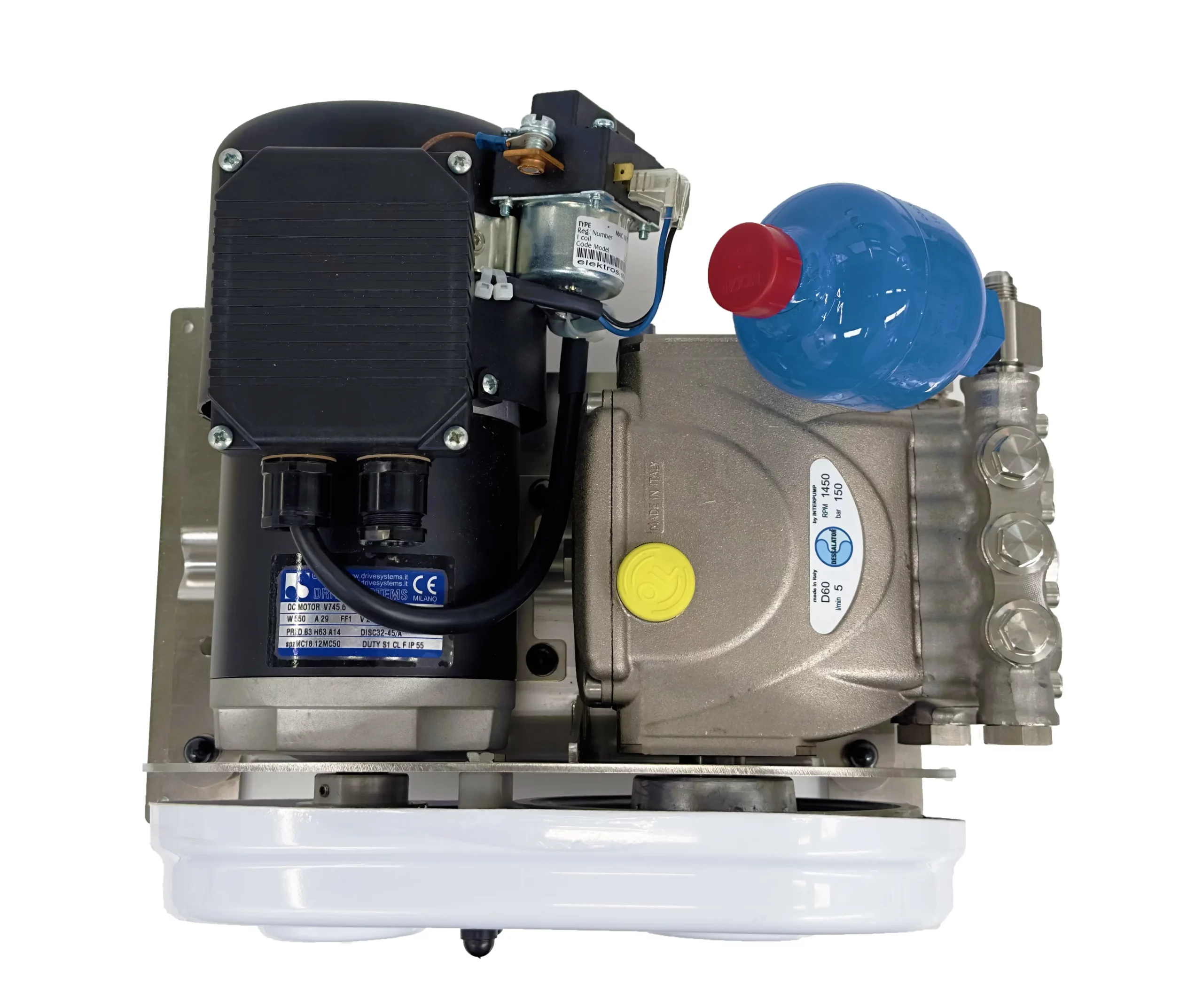

- Brushless motor specifically optimized for operation with lithium battery systems
- New-generation high-pressure pump
- Stainless steel pump head
- Outstanding resistance to corrosion and electrolysis
- Easy access for inspection and maintenance
- Reduced operating noise thanks to its optimized design
- Motor/pump assembly dimensions reduced by 20%
- Equipped with a flow controller to protect membranes when operating in brackish water
- Developed and tested by Dessalator® over a five-year period in partnership with the world’s leading high-pressure pump manufacturer
- Patented design
- Simple and intuitive operation
- Robust components ensuring reliability and long service life
Optional: Micro Remote Control.
All DESSALATOR® watermakers are delivered as complete systems and comply with current CE standards, including:
- Seawater intake strainer and through-hull valve
- Automatic freshwater flushing solenoid valve
- 5-micron pre-filter for suspended particles, supplied with installation wrench and equipped with a three-way valve for manual flushing
- Circuit breaker or fuse holder depending on model
- High-pressure piping: 2 tubes and 4 special DESSALATOR® fittings
- Freshwater production tubing between membranes and control panel

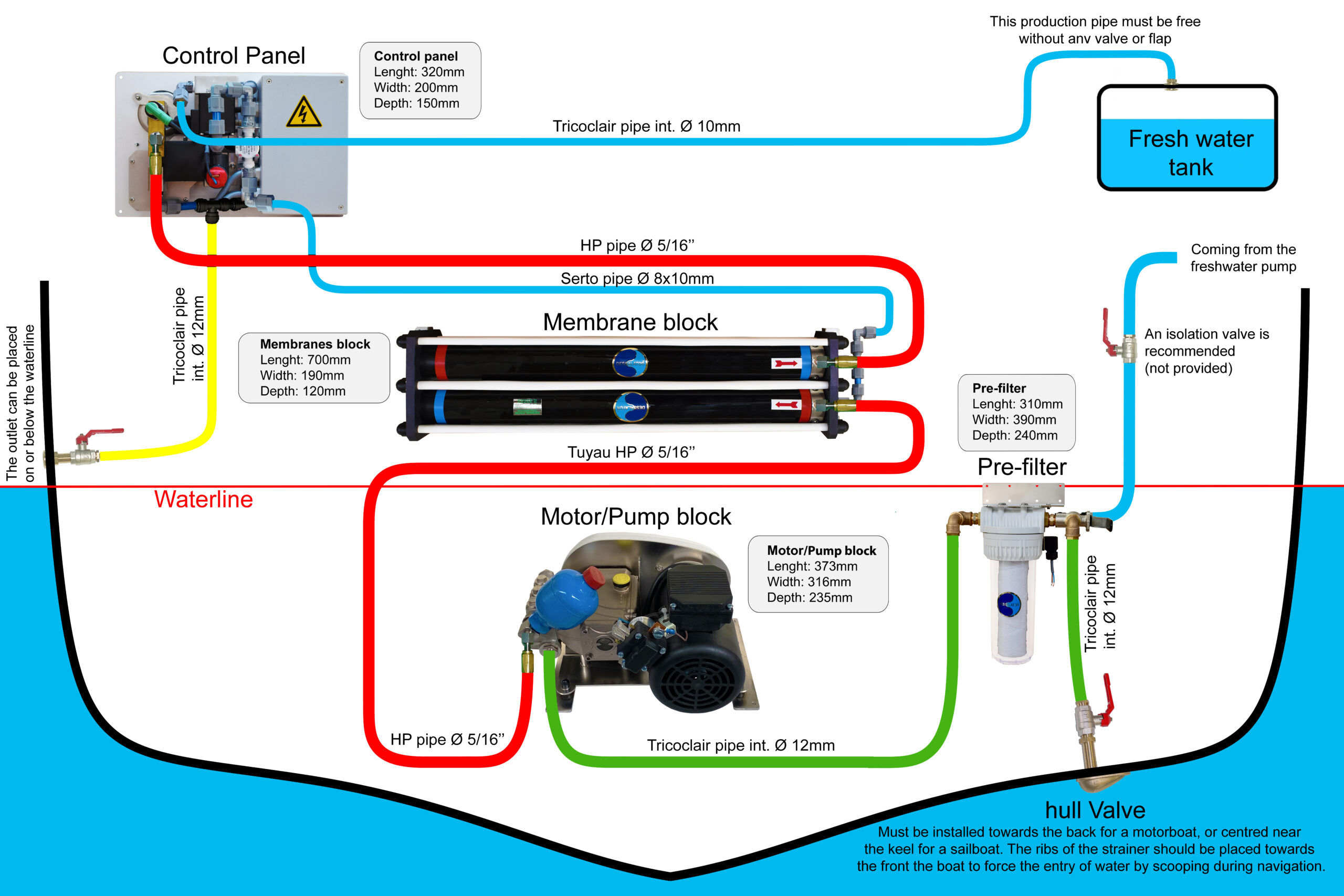

FREEDOM NAVIGATOR D60 – Installation Diagram

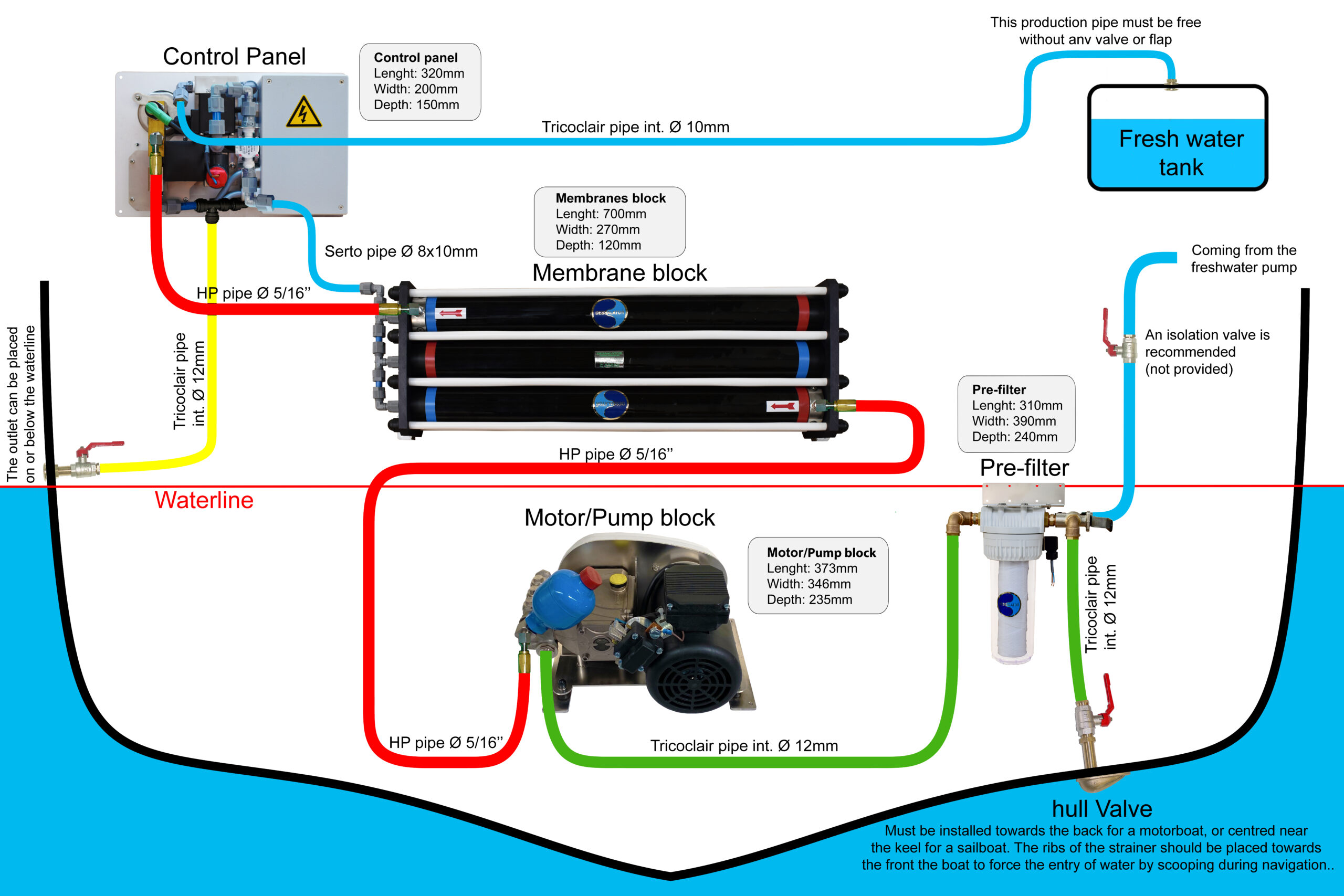

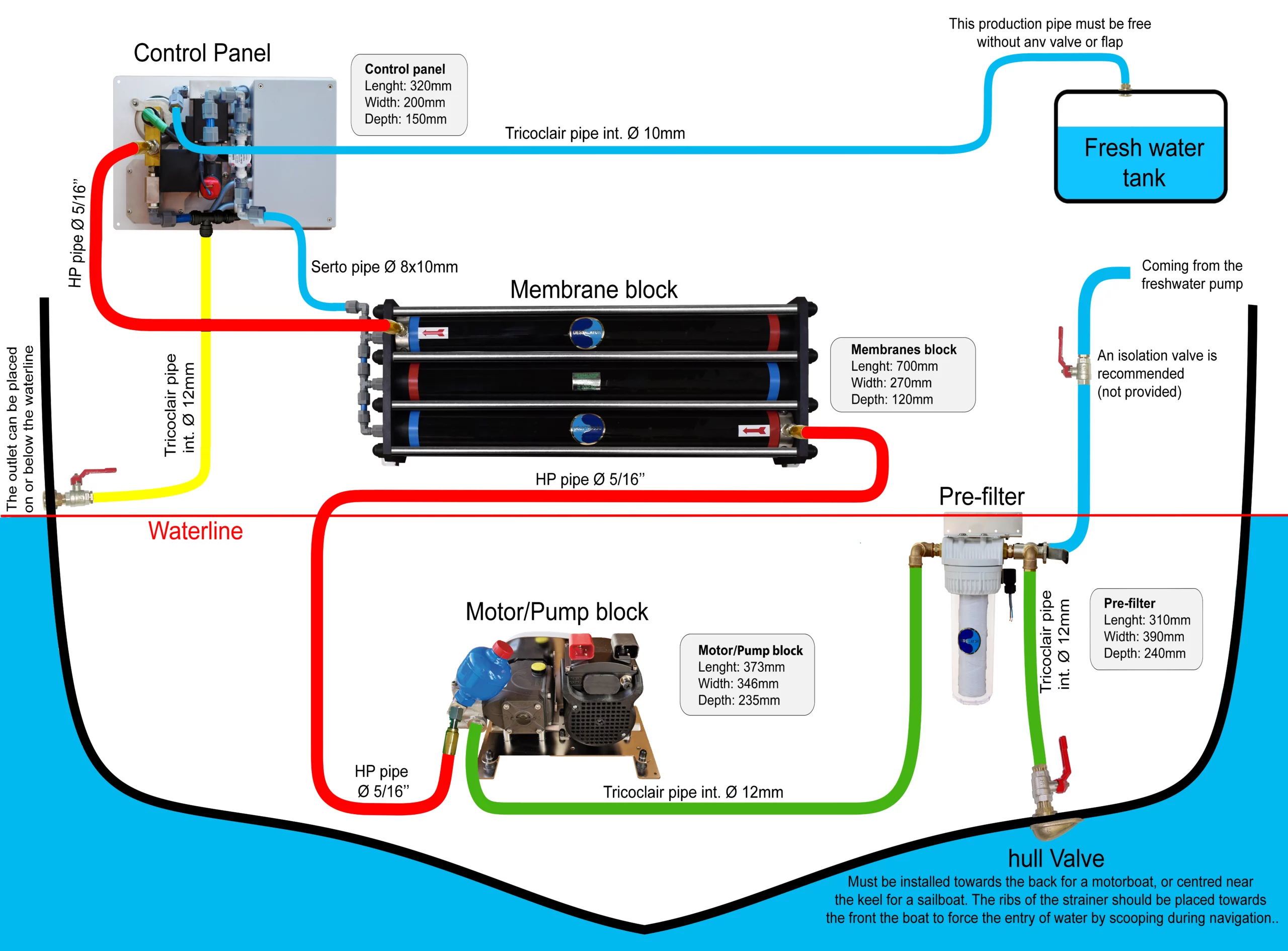

FREEDOM NAVIGATOR D100 – Installation Diagram
