After sales service

In this area, you will find various consumables and spare parts for your watermaker.

According to your cruises and their length, we have spare parts to be planned with technical solutions for ocean navigation: For example, the mineralizing cartridge filter allows to refill the produced water with minerals. Its easy installation, its very long life and its very few needed maintenance make from this product an essential part for a long program on the open sea.



Please find below the spare list:

ST2 Cartridge

ST2 sterilizing cartridge (101405)

See page Sterilizing cartridge

Download Sterilizing cartridge

Sterilizing dose

Sterilizing dose (100371)

See/download  Data sheet Sterilizer

Cartridge filter 5 microns 10p

Cartridge filter 5 µ 10' (100313)

The cartridge has to be replaced either every two or three months, or according to the sea water purity.

When replacing the cartridge, check that the O'ring seal is secure and that the bleeder screw is tightened.

Cartridge filter 25 microns 10p

Cartridge filter 25 µ 10' (100314)

(2nd filter for intensive range - D90 to D200 watermakers)

The Cartridge filter has to be replaced either every two or three months, or according to the seawater purity.

When replacing the cartridge, check that the O'ring seal is secure and that the bleeder screw is tightened.

Complete mineralizing filter

Complete mineralizing filter (100953)

We recommend this filter for people living continuously on board.
It should be mounted between the water production outlet of the control panel and the tank.
The minerals when reducing are producing a mud. Please think of regularly cleaning the cartridge.
Every three months please think of cleaning the minerals in a strainer and put them back into the filter.
The mineralizer will progressively disappear. It should be replaced every year.

Mineralizer - 1 dose

Mineralizer - 1 dose (100952)

Dose to be replaced after a year (it will progressively disappear).

Service pack 12 / 24V or DUO

Service pack 12 /24V or DUO watermakers (100909)

For long navigation programs

Including:
1 plastic kit, 1 sterilizer kit, 1 O'ring kit, 1 membrane end cap fitting with fitting segment, 1 fuses kit, 4 filters 5 µ 10', 1 quality probe, 1 O’ring for filter container, 1 HP connector, 1 Teflon tape.

Service Pack 230V

Service pack 230V (100296)

(Intensive range water makers D90 to D200)

For long navigation programs

Including:

2 filters 25 microns, 2 filters 5 microns, 1 Membrane O'ring kit, 1 quality probe, 1 plastic connector kit, 1 fuse kit 2 and 5 amps, 1 sterilizing dose, 1 tapped membrane end cap with fitting segment, 1 O’ring for filter container, 1 HP connector, 1 Teflon tape.

Filter key

Filter key (100297)

Cartridge pre-filter:
The pre-filter should be positioned as low as possible below the waterline and it should remain accessible. The mounting bracket is reversible, which facilitates the height positioning.

5 cm space should be left below the pre-filter to remove the container. A key is supplied to dismantle the filter.

O'ring for filter container

O'ring for filter container (102593)

When replacing the pre filter cartridge, check that the O'ring seal for the basin is secure.



Pressure switch

HP switch connection (100027)

Pressure captor

Pressure captor (102087)

Quality probe

Quality probe (100352)

To be replaced according to the electrode wear.

HP manometer

HP manometer (101887)

BP manometer

BP manometer (101958)

Membrane 25.21

Membrane type 25.21 (30 to 100 L/H range) (100015)

See page Membrane replacement

Membrane 25.40

Membrane type 25.40 (D90 to D280 range) (100337)

See page Membrane replacement

Membrane end cap fitting

Membrane end cap fitting with hole and fitting segment (101438)

See page Membrane replacement

Full membrane end cap fitting

Full membrane end cap fitting (102579)

See page Membrane replacement

Inter connector

Inter connector for membrane (102581)

Re-usable HP connector for HP hose

Re-usable HP connector for HP hose (102054)

HP angled pipe connector

HP angled pipe connector (102562)

Kit of plastic end caps

Kit of plastic end caps (101402)

See membrane replacement

Poly-V 758PJ5

Poly-V 758PJ5 driving belt for DUO and SOLO 230V (102957)

Beware: New from middle of juin 2008.
For older driving belts, please send us your inquiry.

Poly-V 923PJ5

Poly-V 923PJ5 driving belt for DUO 12 or 24V (102956)

Beware: New from middle of juin 2008.
For older driving belts, please send us your inquiry.

Poly-V 654PJ5

Poly-V 654PJ5 12 driving belt for 12 or 24V - D30 to D100 (102960)

Beware: New from middle of juin 2008.
For older driving belts, please send us your inquiry.

O'ring kit for 277 HP pump

O'ring kit for 277 HP pump (101505)

See/download High Pressure pump exploded view

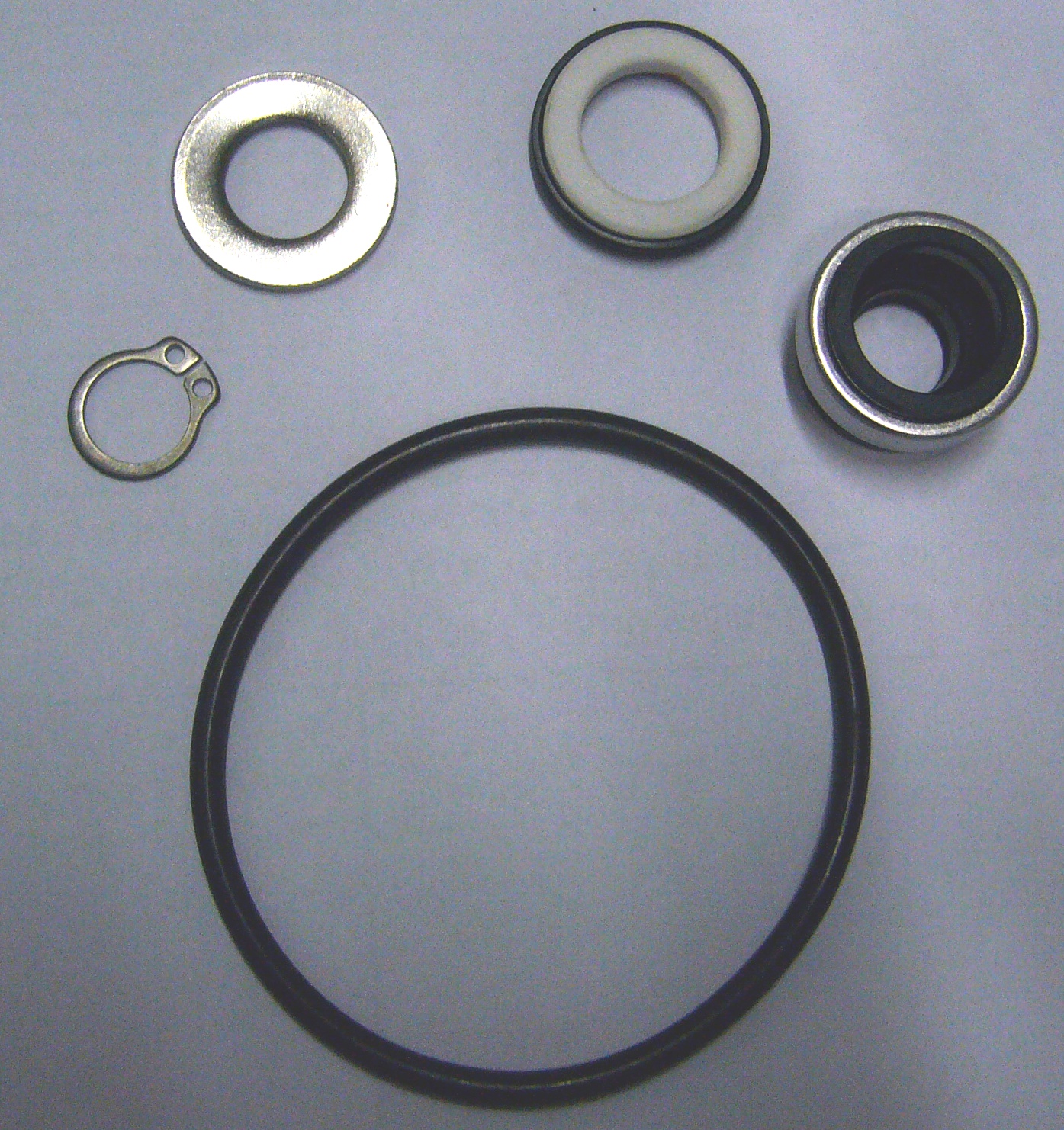

O'ring kit for BP pump

O'ring kit for BP pump (101536)

See/download Low pressure pump technical plan

Low pressure pump body (100637)

Low pressure pump exploded view

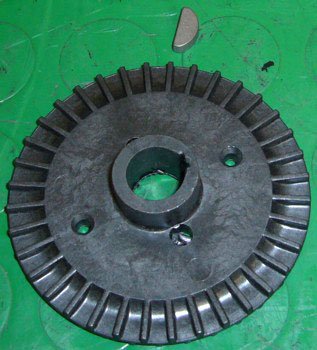

Turbine for low pressure pump (100638)

Low pressure pump exploded view

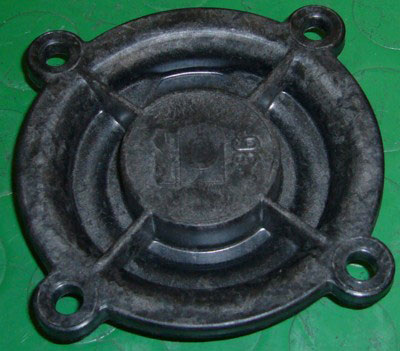

Turbine cover for low pressure pump (100433)

Low pressure pump exploded view

Mpowerpad

Mpowerpad (103102)

See user brochure
